How to Connect a SIP/TLS Extension to the Softphone

How to Connect a SIP/TLS Extension to the Softphone

A SIP/TLS extension allows users to connect to the Squaretalk Platform using a secure SIP connection.

This guide explains how to configure a SIP/TLS extension and connect it to a softphone.

What Is the Difference Between SIP and SIP/TLS?

SIP (Standard SIP)

  • Uses plain, unencrypted SIP signaling

  • Works in most environments

  • May be blocked by strict networks or firewalls

SIP/TLS

  • Uses TLS encryption for SIP signaling

  • More secure and compliant

  • Often works better in restricted networks

  • Recommended for high-security environments

Step-by-Step: Connect the Extension to the Softphone

Once your SIP/TLS extension is enabled, you can connect the extension using your Softphone.
📌 To learn more details, see: How to Switch an Extension Type.

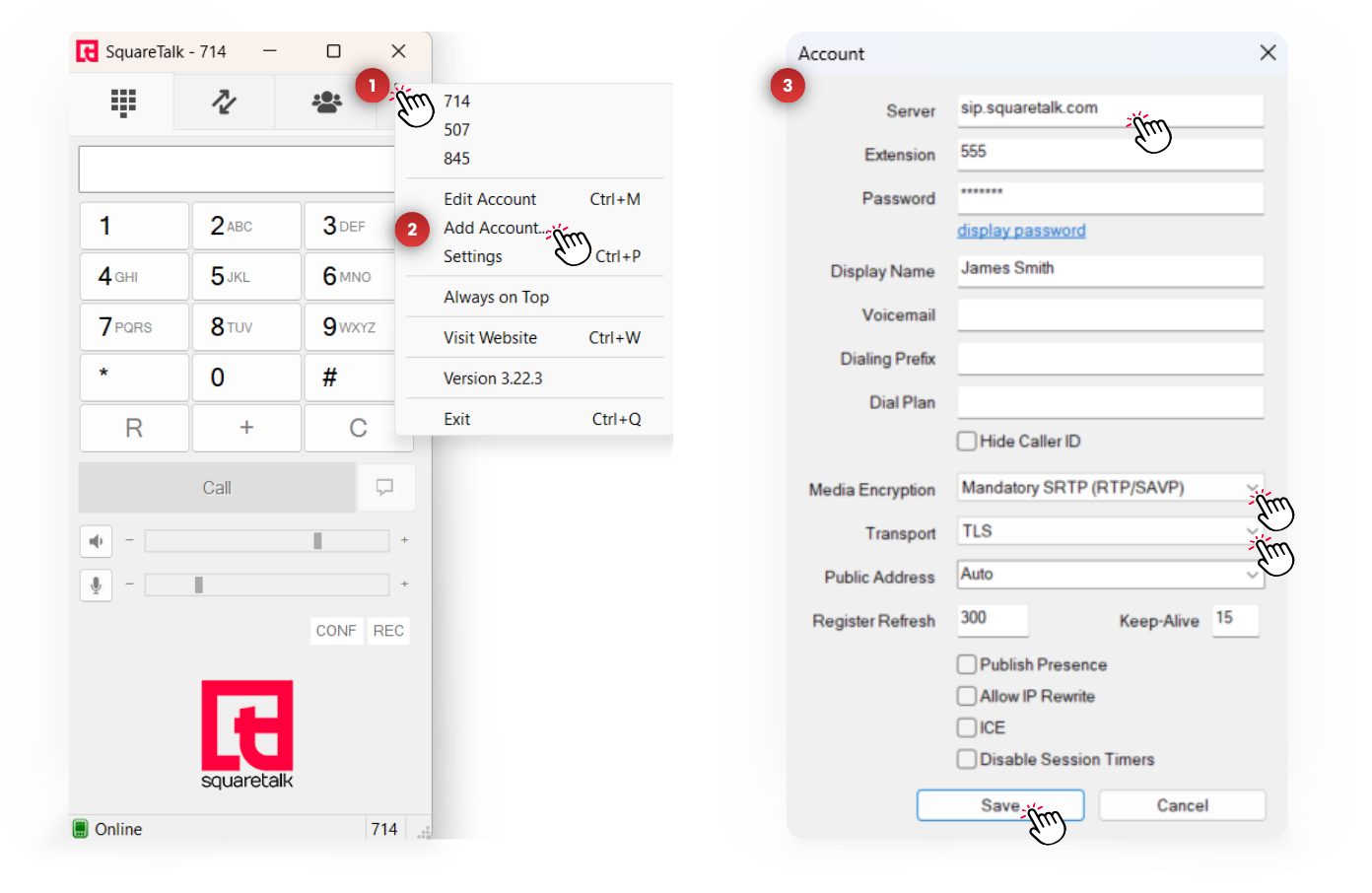

  1. Open the Softphone settings (click the three lines in the top right corner) and go to Edit Account.

  2. Fill in the Server field. (Make sure no port is added next to it)
    Example:
     ✅ sip.squaretalk.com
     ❌ sip.squaretalk.com:5060

  3. Fill in the extension number and password (find in in the Squaretalk Platform by going to  Settings → Users & Permissions → Users).

📌 To learn more details, see: How to Change and View an Extension’s Password (Secret).

  1. Select "Mandatory SRTP (RTP/SAVP)" from the drop-down menu in the Media Encryption field.

  2. Сhoose "TLC" from the drop-down menu in the Transport field.

  3. Click Save to apply the changes.

Done 🎉

You have successfully configured a SIP/TLS extension in Squaretalk and connected it to a softphone using secure SIP signaling.
